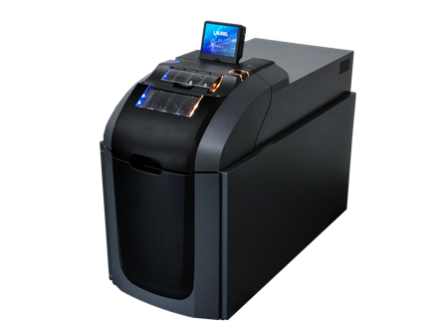

Z1 / Z1HR
Dimensions
(HxWxD)
690 x 500 x 1080 mm
*760(H) for Operation Panel
Weight
Z1(Z1HR) Module: Approx. 180 kg
Safe: Approx. 400 kg (CEN III)
Counting Speed Up to 7 notes/sec.
Input pocket Capacity Max. 300 notes
Output pocket Capacity Max. 200 notes
Collect Cassette Capacity Max. 2400 notes
Roll Storage Capacity Max. 600 notes x 8 Storage
Storage Capacity
Max. 4,800 pcs: Roll storage x 8
Max. 7,240 pcs: Roll Storage x 8 + Collection Cassette
Interface Ethernet (Option)
Options
Input Pocket Shutter
Output Pocket Shutter
Customer Display
Serial Number reading function (Z1HR)
Collection Cassette Function
Security Safe Sensor
Anker Bolts
